GlowZone

Infrared Loop Sterilizer - using IR-HotSpot Technology

High-Speed Annealing and Sterilizing the Smart Way

Are you looking for a fast, efficient and flameless product to anneal or sterilize your inoculation loops and delicate micro instruments? Then our electrical GlowZone Etna should be your first choice.

Smart Infrared Light – Instantly Ready to Work

Specifically focused infrared light generates an IR-HotSpot in which your inoculation loop is sterilized at temperatures from 750 to 1000°C after only 5 to 10 seconds. The GlowZone Etna just needs to be plugged in and will be immediately ready to use, without any unnecessary warm-up period. Our highly sophisticated annealing tube is based on many years of experience. It is made of special quartz glass. The tube is closed at one end preventing any risk of contamination with pathogenes. The annealing tube can be slid out in a matter of seconds for easy cleaning.

Smart Operation – Touchless Working

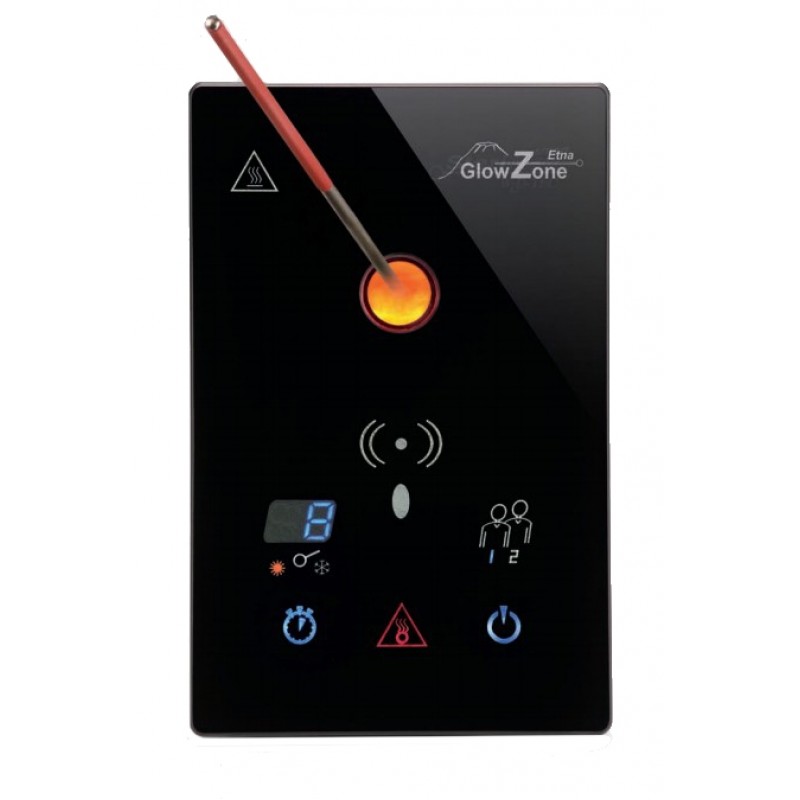

GlowZone Etna allows you to fully focus on your core task. Hardly any attention is needed for inserting your inoculation loop into the annealing tube – which is easily accessible from the front of the flat glass panel. Touchless IR-Sensor technology starts each sterilization process automatically. Adjustable timers signal both the completion of sterilization and cooling via the display and an audible signal. After that your inoculation loop is ready for use. Both timers can be adjusted and recalled individually and up to the second for two users by gently touching the panel.

Smart Use of Power – Minimum Heat Dissipation

’Thermocontrol’ is the key element for an efficient use of power. It allows for quick but smooth softstart of the infrared light, a short heating period and the re-use of residual heat for the next sterilization process, which will be respectively shorter. Whenever you pause, your energy consumption and heat dissipation will pause as well.

Smart Design – Outstanding Features

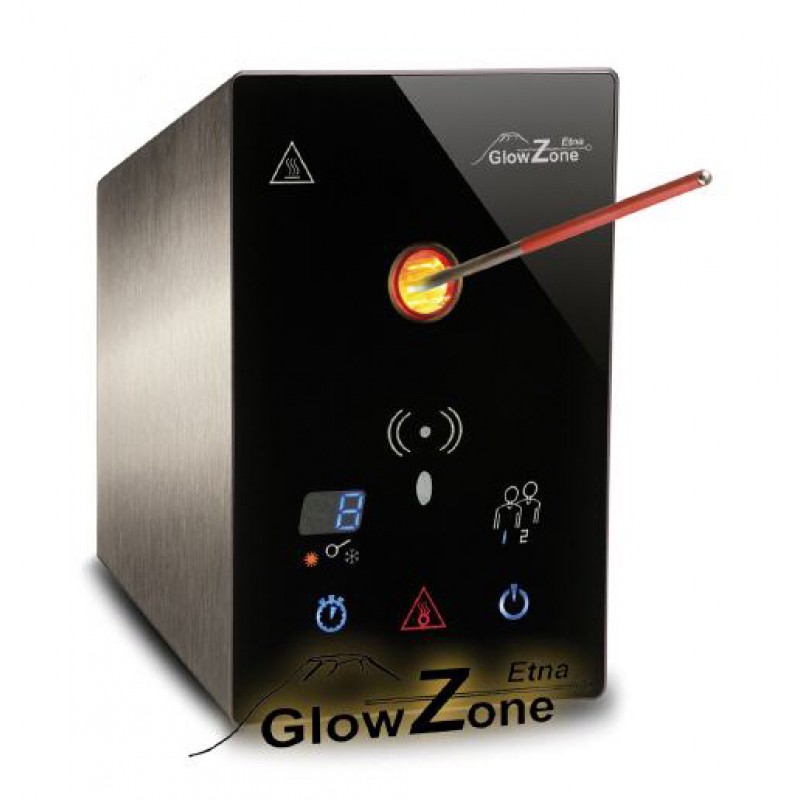

GlowZone Etna comes in an elegant stainless steel housing with a touch safety glass control panel designed for extreme laboratory environments with many unique features:

  • Instantly ready to work without any unnecessary warm-up
  • Auto-Start through touchless IR-Sensor technology
  • Touch operation
  • Adjustable sterilization and cool-down timers for two users
  • Annealing tube made of special quartz glass
  • Very simple cleaning of the device and annealing tube


Technical Data



IR-Sensor:

sensor range 8-stage adjustable

Touch operation:

   - ON / OFF, selection for 2 users sterilization timer 5 - 10 s

   - inoculation loop cooling timer 0 - 25 s with audible signal (disengageable)

Thermocontrol:

dynamic sterilization timer

Annealing tube

Sterilization temperature

Quartz glass:

750 °C - 1000 °C (1382 °F - 1832 °F)

Safety features



Residual heat display:

indicates a hot annealing tube

Automatic unit switch off:

15, 30 or 60 min

Temperature monitor:

thermal circuit breaker

Electrical



Power supply:

220 - 240 V or 112 - 128 V, 50/60 Hz

Power consumption:

approx. 600 W / short time (5 - 10 s)

Protection class:

IP 20

Heat source:

IR halogen spot light

Mechanical



Quartz glass annealing tube:

outer-Ø 19 mm, inner-Ø 16 mm, length 112 mm

Casing:

heat resistant glass / stainless steel, UV and solvent resistant

Measurements (w x h x d):

110 x 170 x 180 mm

Weight:

approx. 1800 g

Licenses



CE:

EN 61326-1, EN 61010, EN 62 471

EEC guidelines:

2004/108/EC, 2006/95/EC, 2006/25/EC

Protected Design

D DM/082 011
