LabFlame Safety Burner

Safety enhanced laboratory bunsen burner with touch free ignition sensor

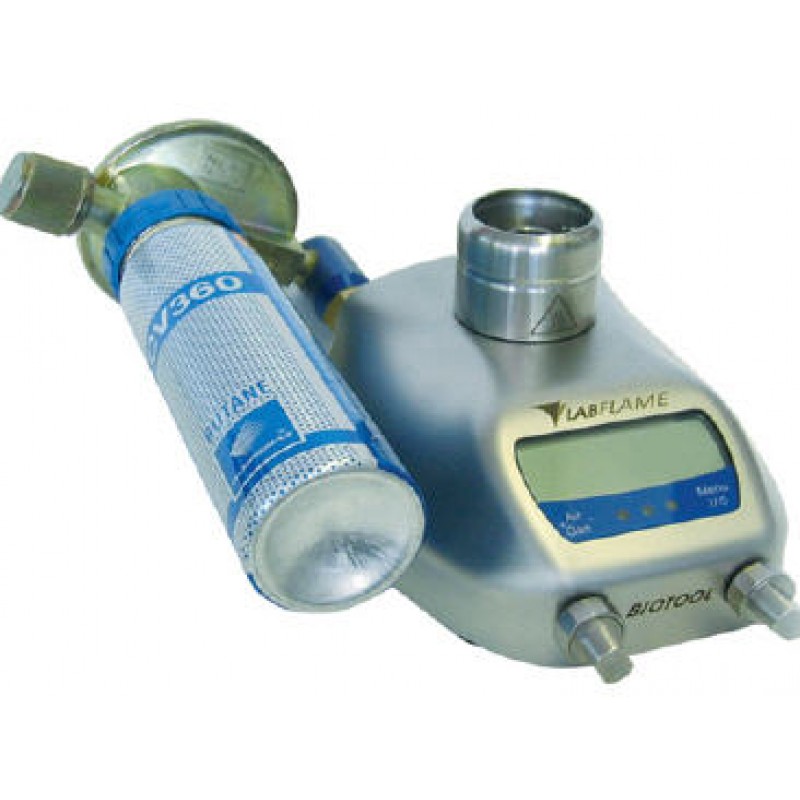

The new LabFlame is optimized for use in microbiology laboratories. Its stainless steel housing is made of one piece, free of any gaps or rims and therefore easy to clean and fully UV resistant. Its optimized air-flow system allows a uniform and constant flame even in safety cabinets with horizontal or vertical air flow. Connectable to any kind of gas sources.

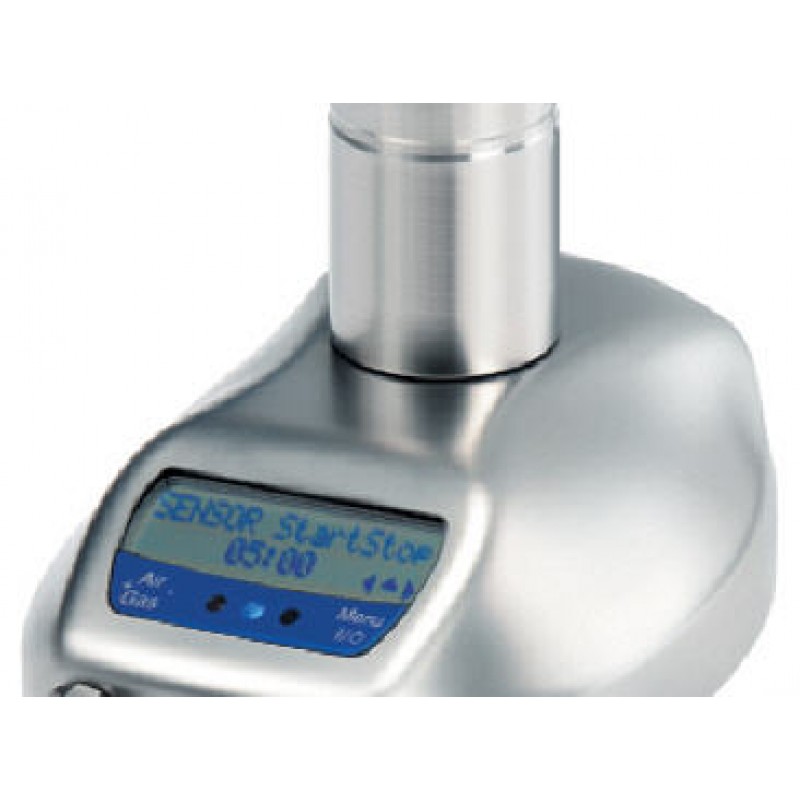

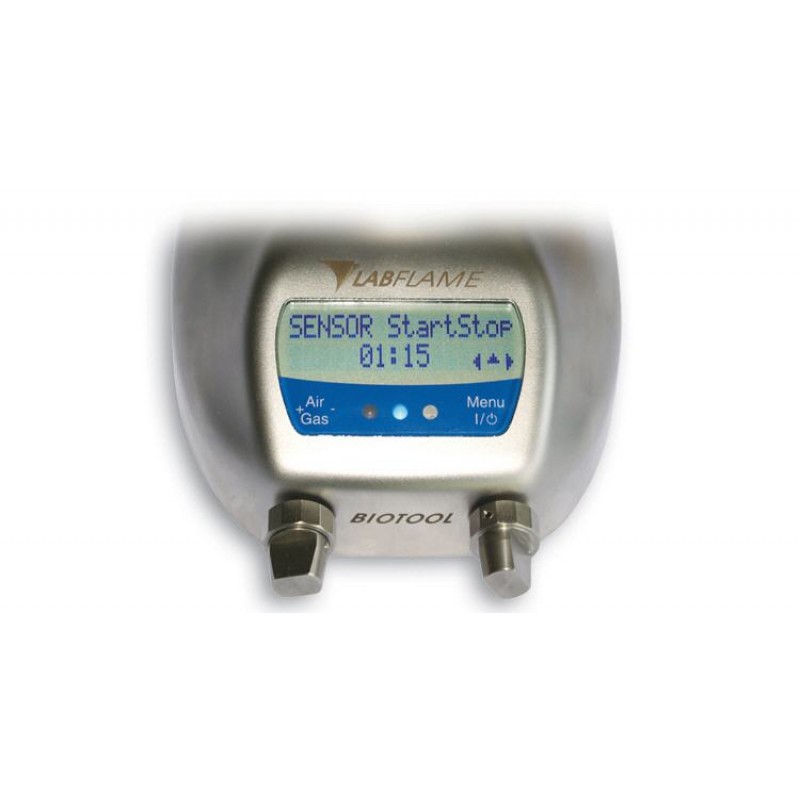

All controls for gas and air supply as well as the multifunctional control for the modes of operation are conveniently located on the easy to read display.

Without grooves and rough edges. The low profile body facilitates lab-ergonomic operation; the streamlined design reduces air flow disturbances in a clean room workbench to a minimum. Moreover the LabFlame is very easy to clean.

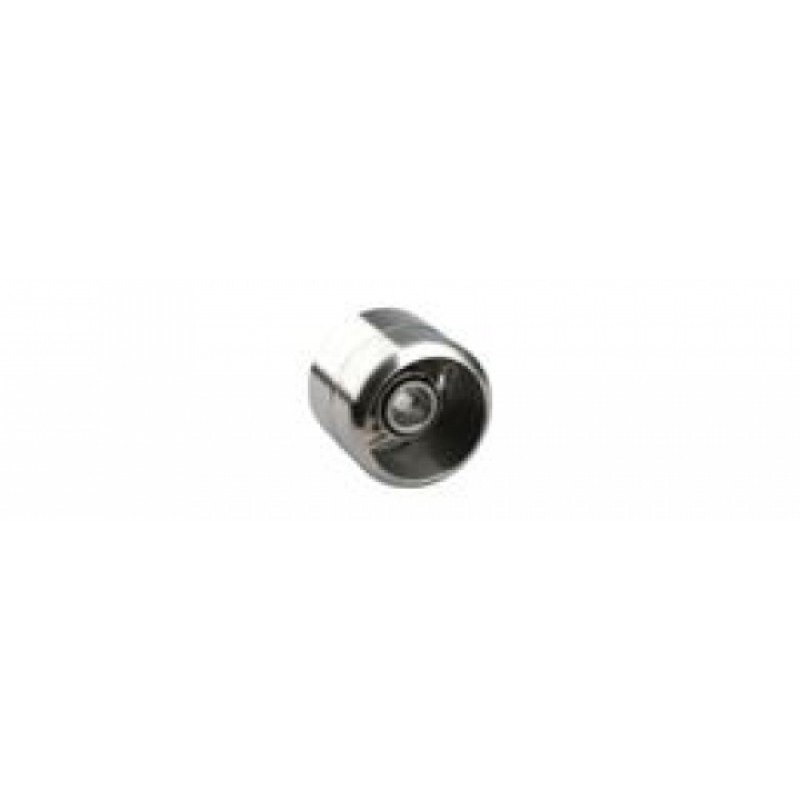

Removable Burner Head. Made of stainless steel

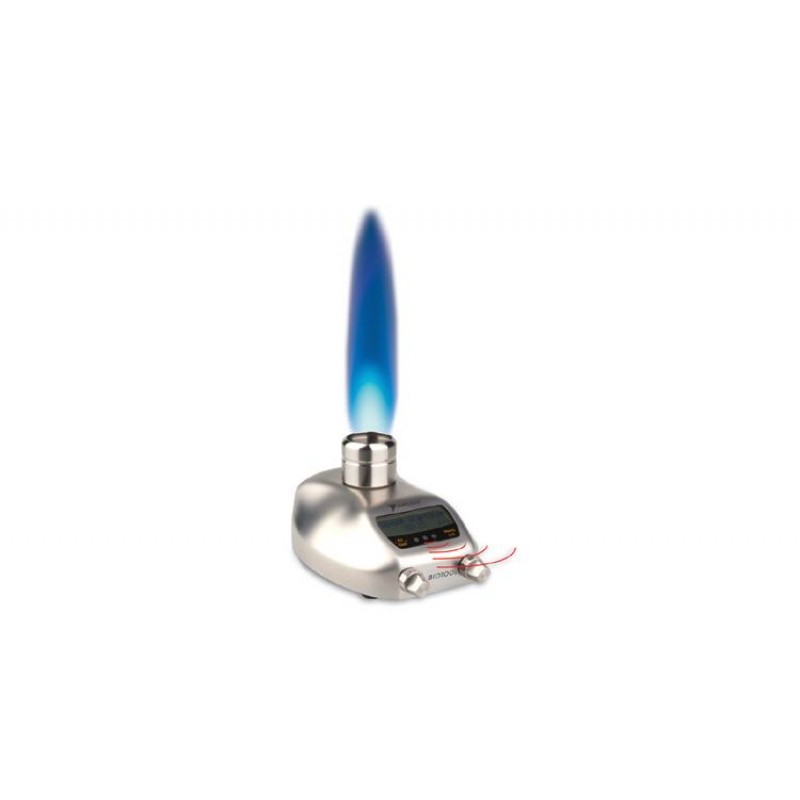

An extremely firm and consistent flame with only a few flicks of the wrist

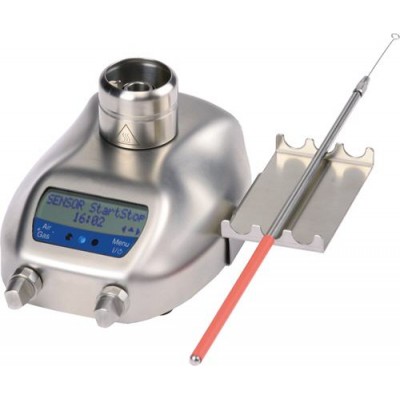

Carrousel for flame sterilizing inoculation loops

The inoculation loop Autoloop PRO, which is suitable for up to 4 inoculation loops, was developed to comply with current requirements in microbiological, cellbiological and biotechnological laboratories.


Technical Data

Technology:

Microprocessor

Display:

Fully graphic dot-matrix

Rotational direction:

Left / right, depends on removed holder

Inoculation loop holder:

1 - 4, with optical holder detection

Time of flame sterilizing:

1 - 15 sec

Time for cool-down period:

1 - 45 sec

Safety features:

Temperature control, flame activation warning, indicator of remaining cool-down, tilt sensor, residual heat display.

Adjustable sterilization

monitor:

1.    Off

2.    low intensity

3.    middle intensity

4.    high intensity

Stand by:

Automatic unit switch off: 1 h

(or with stand-by time of the burner)

Operating voltage:

via Fuego (foot pedal socket)

Casing:

Stainless steel & aluminum, UV and solvent resistant

Measurements:

·         Pedestal (Art.-No. 8.000.400):

·         135 x 180 mm (w x d)

·         Pedestal (Art.-No. 6.000.400):

·         135 x 135 mm (w x d)

·         Height Auto loop PRO: 305 mm

Weight:

·         Art-No. 8.000.400: 1200 g

·         Art-No. 6.000.400: 1100 g

CE:

EN 61326-1, EN61000-3-2, EN 61010

EEC guidelines:

89/336/EEC, 73/23/EEC
