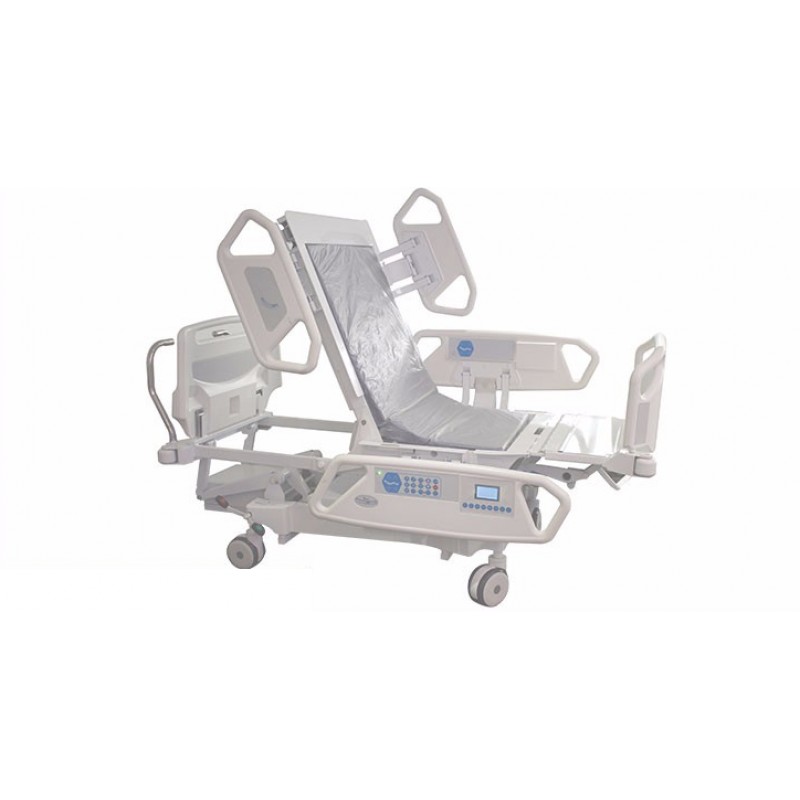

Electric Icu/Ccu Bed

High-end electric bed, can be used in ICU room

This bed is with FDA, CE approval

Model	SK005-1
Overall length (extended)	2020mm
Overall length (not extended)	1920mm
Overall width	995mm
Patient platform length (extended)	1920mm
Patient platform length (not extended)	1820mm
Patient platform width	820mm
Maximum safe load	250kg
Back-rest adjustment	0°-70°
Knee-rest adjustment	0°-30°
Trendelenburg / Reverse trendelenburg	0°-15°
Height adjustment	500-940mm
Foot-part decline	0°-90°
Caster diameter	150mm
The length of the Railing	L985mm (Big) L630mm (Small)
The Height of the railing from the platform	H370mm
The Size of the Head Board	H530mm*W840mm Thickness: 38mm
The Size of the Foot Board	H385mm*W840mm Thickness: 38mm
The Diameter of the bumper wheel	Dia. 73.77mm
The Diameter of the big knob ( For I.V. pole)	Dia. 43.6mm
The thickness of bed platform	2.2mm
The thickness of bed structure	2.8mm

[Standard Function]

Linak motor and control box
Supplied with back-up battery switch
Detachable head and foot board -- quick/easy one step for CPR
CPR handle, dual side, with clear red mark.
Electric CPR-Instant release of back part
Manual CPR-All functions go back to origin
Remote controller built in railing, both side: inside for patient easy controlOutside for nurse control
Bed light button at the patient control panel
Title angle indicator in railing: one for backrest, one for trendelenburg

Two lights in the railing: one indicate the" power", one indicate the "brake not set"
One button chair position
Bed length can be extended when needed
Chrome plating push handle, 2 position adjustable
With Bumper wheels,
With I.V. pole, stainless steel grade 304, Height adjustment from 660mm-1315mm (from platform to hook), big lock knob 43.6mm dia. Four prevision for I.V. pole
With Drainage bag hooks on both sides
Central brake system with 6" wheels
Integrated base with all cable and motor inside, the bed can be washed
X-ray translucent back part, C-arm function available.
ABS railing is below bed platform when folded down, 2.5cm height difference
Brake panel below head board, marked red mean: lock, marked green mean: release
Plastic cabs cover each nut
