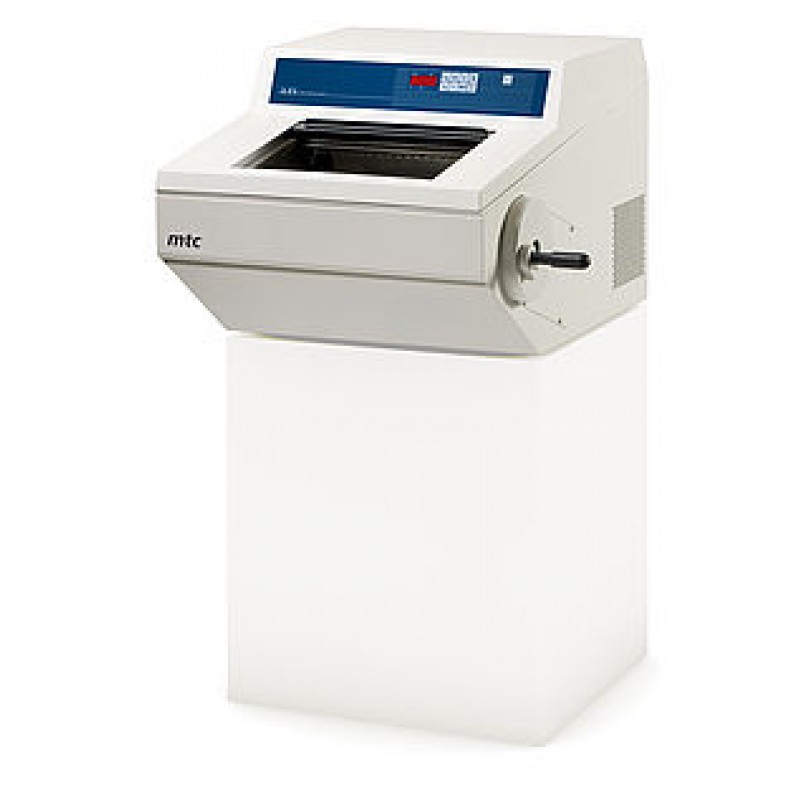

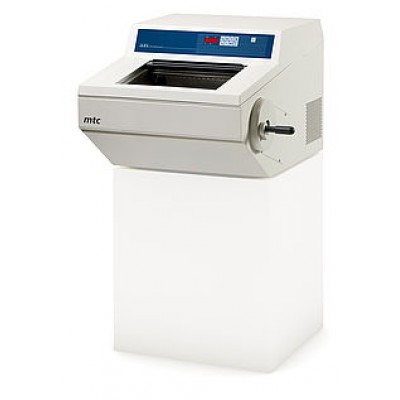

MTC Complete benchtop cryostat
The MTC is a unique complete bench top cryostat for use in histology/pathology and research laboratories. The compact design makes this instrument an ideal backup for installed high-end cryostats and cost efficient alternative for low turnover applications. MTC is designed utilizing the latest ergonomic and technical ideas with special attention to hygiene and ease of handling.

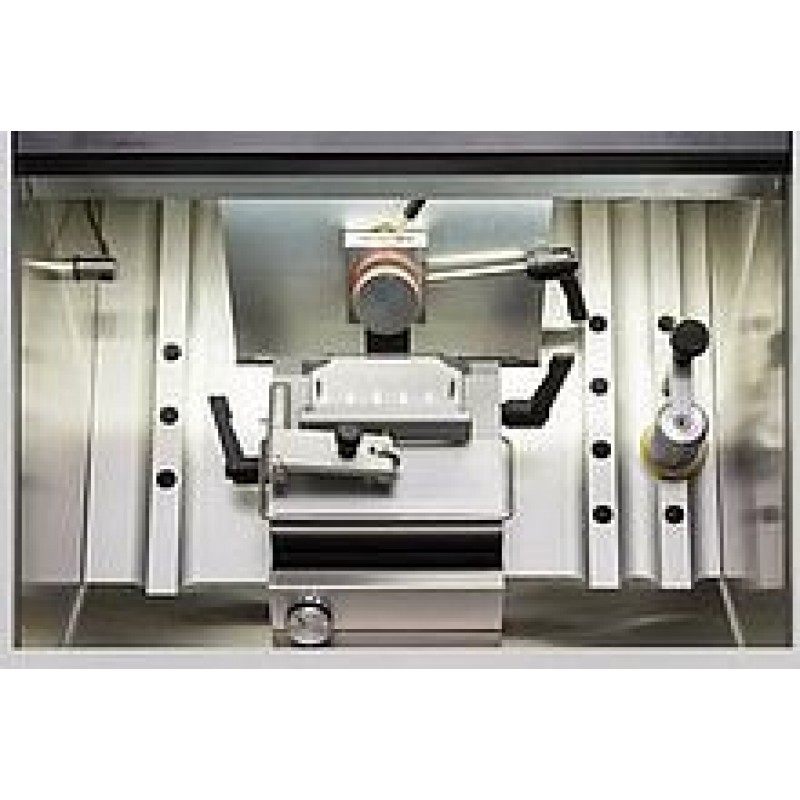

- High-precision manual rotary microtome
- 11x Specimen preparation positions
- Integrated heat extractor
- Orientation of specimen holder in three planes
- Viewing window made of frost-free dual insulation glass
- Space-saving design
- Easily transportable
- Intuitive control panel
- Automatic defrost
- UV-C disinfection (optional)
- Height adjustable support stand (optional)
| Material | stainless steel |
| Dimensions [WxDxH] | 360 x 400 x 230 mm |
| Illumination | LED, white |
| Temperature range | 0 °C to -35 °C |
| Section thickness Setting range | 1.0 µm to 25 µm |
| Section thickness selection | 1.0 to 10 µm in 1.0 µm-steps 10 to 25 µm in 5.0 µm-steps |
| Trimming thickness setting range | 1.0 to 25 µm |
| Horizontal specimen feed | 25 mm |
| Vertical stroke | 52 mm |
| Coarse feed | manual |
| Specimen orientation, horizontal | 8° |
| Specimen orientation, vertical | 8° |
| Specimen orientation, z-axis | 360° |
| Dimensions[WxDxH] | 550 x 730 x 470 mm |
| Weight [w/o accessories] | 80 kg |
| Electrical parameters | 230 V; 50-60 Hz (Art.No.: 10140000) 115 V; 50/60 Hz (Art.No.: 10142000) Pmax: 600 W |
