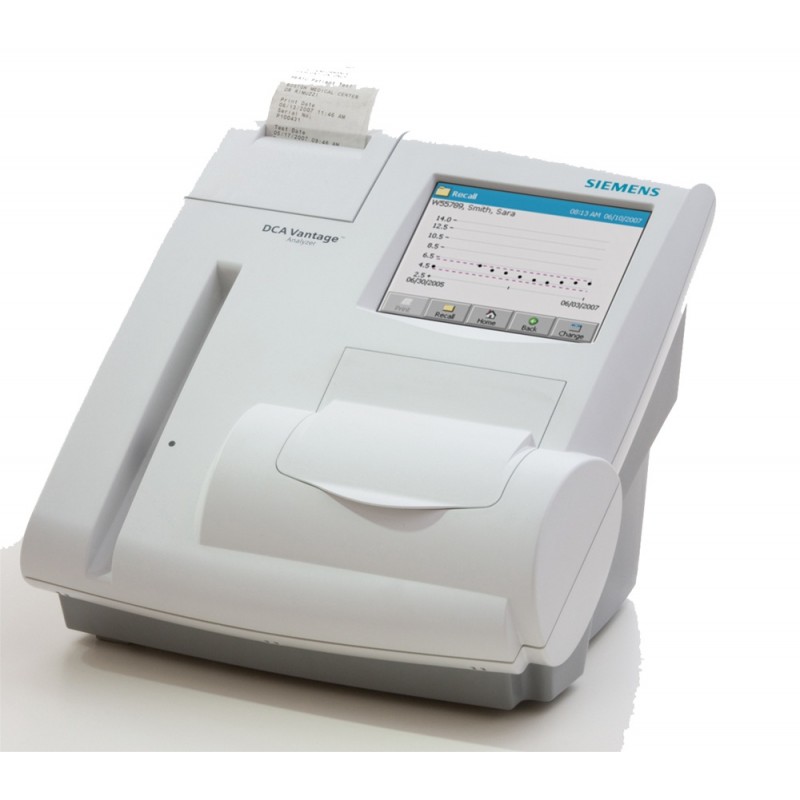

Siemens DCA Vantage Analyser

The DCA Vantage Analyzer is a point-of-care system that helps you monitor glycemic control and detect early kidney disease.

Albumin, Creatinine, and Albumin-to-Creatinine (A:C) ratio from a urine specimen in 7 minutes to report a quantitative protein status with automatic creatinine adjustment
Onboard GFR calculator indexes kidney function

Self-contained cartridges facilitate easy, walkaway operation after sample loading
No sample or reagent preparation required
Bar-code scanner for safer and faster patient/operator ID entry
Review results on-screen or generate a hard copy report to minimize transcription errors in the office
Convenient local storage of up to 4,000 onboard records with powerful sorting capabilities
Automatically upload results to a PC via a USB flash drive to reduce manual logging and save time
Minimal maintenance requirements with automatic reminders to alert you when maintenance is due

Customizable security access modes support up to 1,000 operators, protect patient information, and prevent operation by unauthorized users
POCT1-A2 communication protocol streamlines data transfer for easy connectivity and fast, two-way communication to LIS/HIS, RAPIDComm® System, or other third-party POC data management systems
Automatically upload results and QC information to LIS/HIS to reduce manual logging and save time
Take testing oversight to the next level with RAPIDComm Data Management System to remotely manage multiple analyzers and operators to enhance compliance and improve risk management. POC coordinators can standardize test procedures, enforce QC protocols, control access privileges, define operator recertification requirements, and more. Customized alerts, reports, and audit trails ensure peace of mind and simplify accreditation and inspections

Overview
System Description	Point-of-care immunoassay analyzer
Quantitative Tests	Hemoglobin A1c (whole blood): Range: 2.5% to 14% (4mmol/mol to 130 mmol/mol) Microalbumin/Creatinine (urine): Single test reports all three results for: Albumin: 5 to 300 mg/L; Creatinine: 15 to 500 mg/dL (1.3 to 44.2 mmol/L); Albumin-to Creatinine Ratio: 1 to 2000 mg/g (0.11 to 226 mg/mmol)
Test Format	Self-contained immunoassay cartridges
Test Measurement	Automatic, optional transmission
Test Method	HbA1c: monoclonal antibody agglutination reaction Albumin: polyclonal goat anti-human albumin antiserum Creatinine: Benedict Behre chemical reaction
Time to Test Results	HbA1c - 6 minutes
	A:C Ratio - 7 minutes

Test Handling
Sample Volume	HbA1c - 1µL whole blood Microalbumin/Creatinine - 40µL urine
Sample Preparation	No pretreatment; no pipetting required
Sample ID/Operator ID Entry	Optional; via touch screen or bar code reader

Lot-specific calibration card provides automatic calibration with every cartridge

Traceable to International Federation of Clinical Chemistry (IFCC) reference materials and test methods for measurement of HbA1c

Onboard Computer
Storage Capacity/Memory	4000 patient and/or control records Up to 1,000 operator IDs

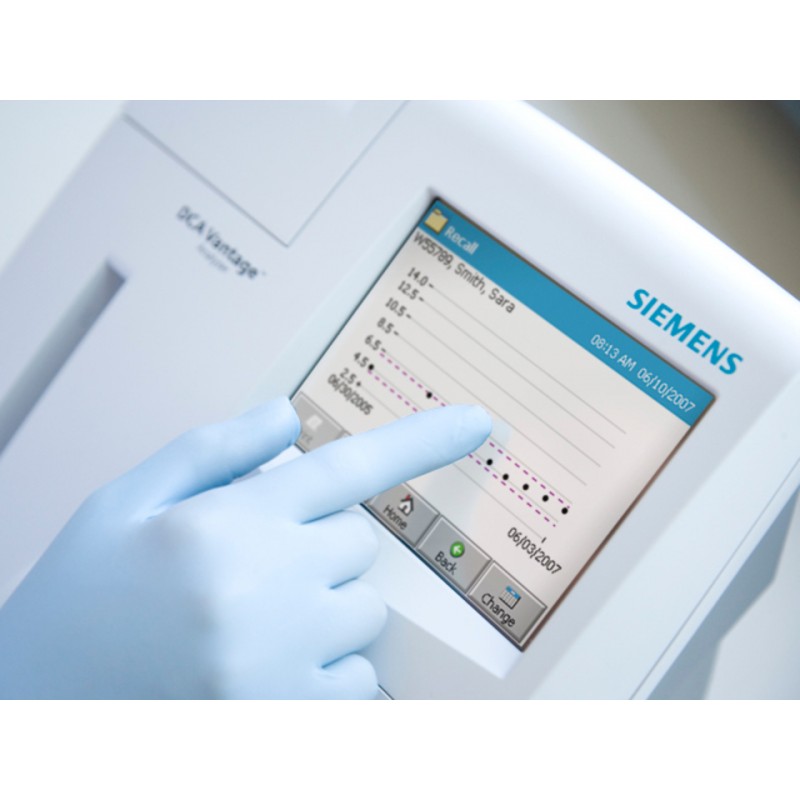

Display	Color touch screen with 1/4 VGA resolution
Data Export	Via USB flash drive to PC or direct to LIS/HIS or data manager, if interfaced

Quality Control/Compliance
Flexible QC Scheduling	None, Automatic Reminders or Required
QC Testing	Optional lockout if schedule not followed or QC fails
User/Operator Access	Restricted, if desired, to protect patient and QC data and prevent unauthorized use
Matching Lab Results/ Reference Method	Adjustable correlation to reference methods
Reference Ranges	User-definable reference ranges available for HbA1c

Computer/Peripheral Interfaces
Serial Port	RS232, ASTM
Ethernet Connection	ASTM or POCT1-A2
Bi-Directional Capabilities	ASTM: Remote computer can be set up to lock out patient tests POCT1-A2: Remote computer can be set up to lock out patient tests, and send operator list to analyzer
USB-Port	Standard USB 2.0
External Bar Code Reader (optional)	Serial (9 pin)
Onboard Printer	54 mm (2 in) width, thermal/label stock
External Printer	Supports standard PCL printer interface via USB port

General
Dimensions	9.0 (h) x 11.5 (w) x 10.5 (d) inches 25.4 (h) x 28.7 (w) x 27.7 (d) cm
Weight	3.88 kg (9.0 lb)
Power Requirements	100 to 240 VAC; 50/60 Hz
Line Leakage Current	<0.3 mA in normal condition <0.5 mA in single fault condition
Maximum Power Input	70 VA; 30 watts
Ambient Operating Temperature	18°C to 30°C (64°F to 86°F) (Albumin) 15°C to 32°C (61°F to 88°F) (HbA1c)
Operating Temperature	5°C to 40°C (41°F to 104°F); 15% to 90% relative humidity
Safety	TUV SUD with CB Scheme, CSA-C22.2, EN60601, IEC 60601, UL60601
EMC Emissions/Immunity	FCC 47: Part 15 (Class B), EN60601-1-2 (Class B)
