Features

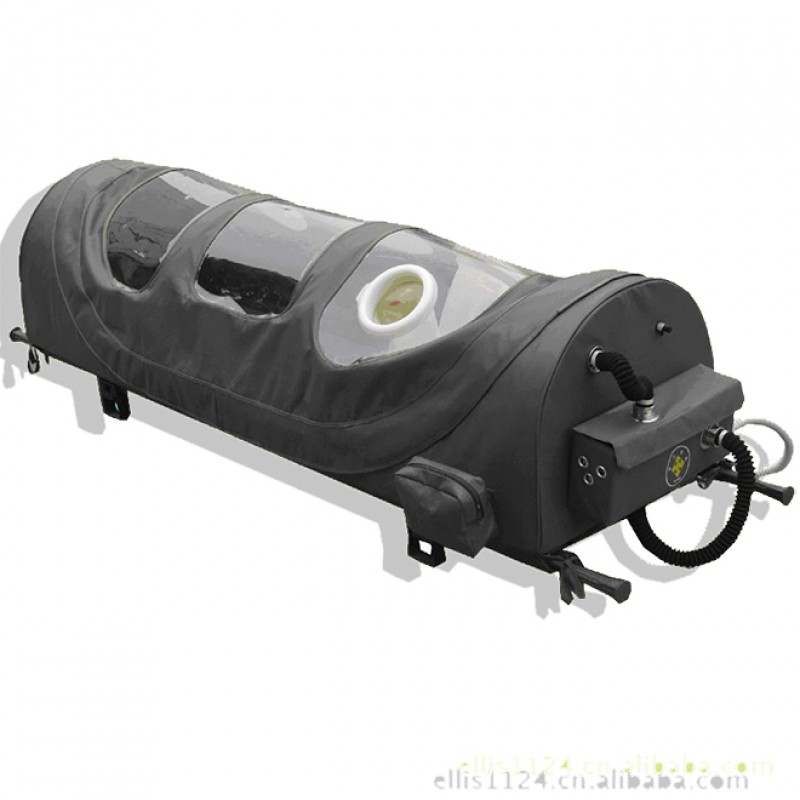

•  SKB3A006-1 is a complete shut-off negative pressure compartment, used for temporary isolation and transferring of respiratory tract infectious disease patient or suspected patient.

• It can prevent pathogens from further spread; protect the medical staff and public environment. The fresh air is delivered to patient’s cabin after through appropriate filter timely, provide comfortable security escort environment for patient.

Technical Indicators & Configuration:

• The air filtration efficiency to 0.3 μm aerosol particles is not less than 99.99%. The effective time is 6 hours.
• Negative pressure device for opening and closing seal of the cabin, equipped with air filtration system and negative pressure generation system. The polluted air in cabin will be expelled by fan after the filtration from canister and the negative pressure is established by adjusting the fan speed, so that to prevent pathogens from leaking.
• Use lithium battery or car battery, two kinds of power-supply modes can be switched. Lithium battery can run continuously for 2 hours after fully charged.
• Suitable for use inside the ambulance,transferring infection patient.
• Cabin negative pressure difference inside and outside is not less than 40pa, negative pressure build time is less than 2 min.
• When negative pressure device at work, the noise of the cabin is less than 72 db (A)
• Ventilation volume more than 50 L/min

Accessories

• Cabin - 1pc
• Canister - 1pc
• Dust filtering box - 1pc (already installed in cabin)
• Air-way tube - 2pcs(1pc long + 1pc short)
• Fan - 1pc
• Controller - 1pc
• Lithium battery charger - 1pc
• Car ignition extension cord - 1pc
• Latex gloves - 1pc
• Gloves ring - 1pc
• User and maintenance manual - 1pc

Specifications
