LabFlame Safety Burner
Safety enhanced laboratory bunsen burner with touch free ignition sensor

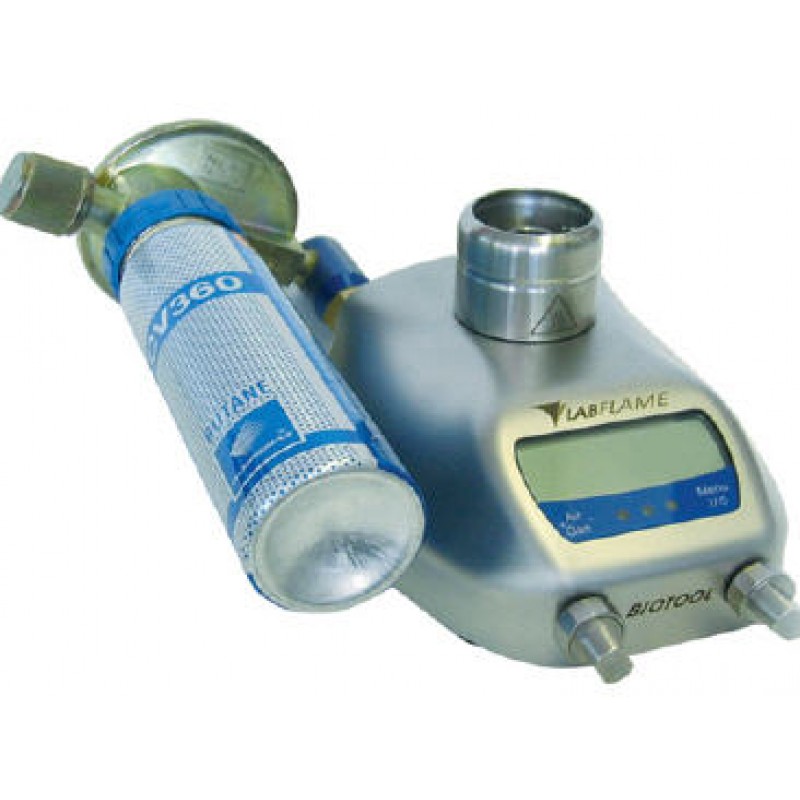

The new LabFlame is optimized for use in microbiology laboratories. Its stainless steel housing is made of one piece, free of any gaps or rims and therefore easy to clean and fully UV resistant. Its optimized air-flow system allows a uniform and constant flame even in safety cabinets with horizontal or vertical air flow. Connectable to any kind of gas sources.

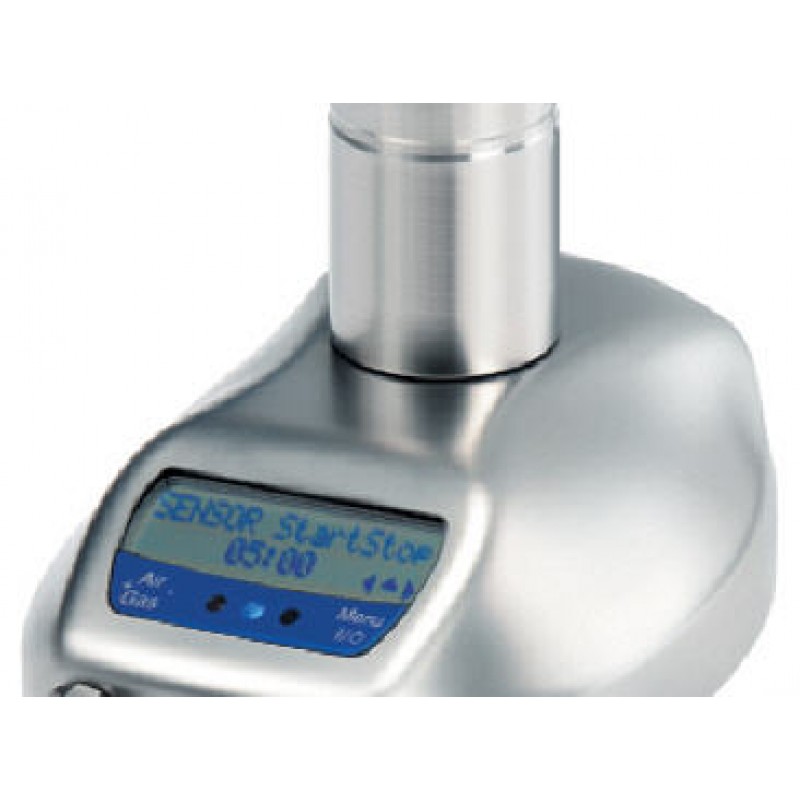

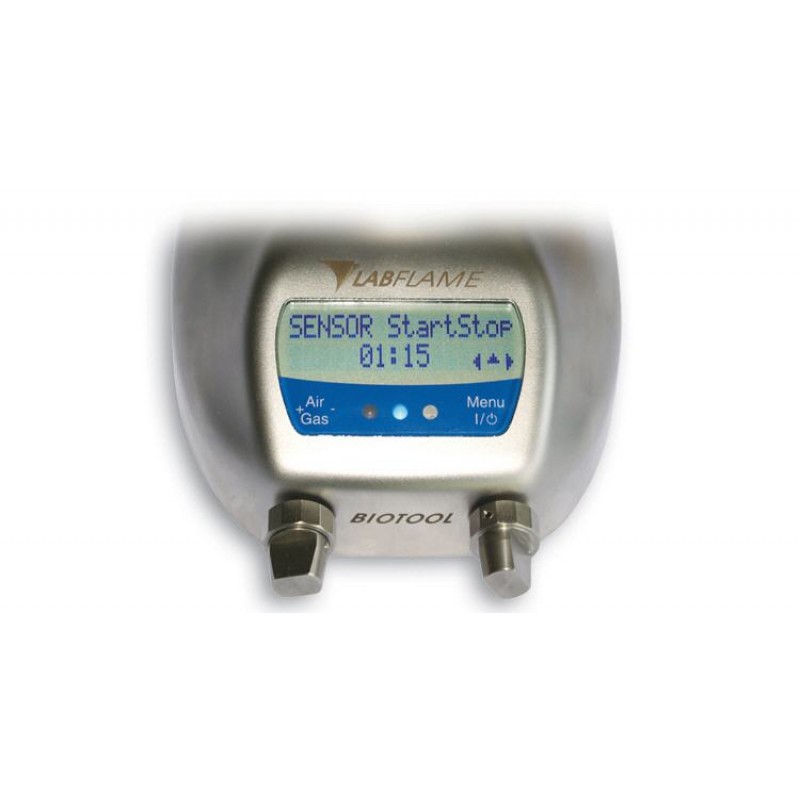

All controls for gas and air supply as well as the multifunctional control for the modes of operation are conveniently located on the easy to read display.
Without grooves and rough edges. The low profile body facilitates lab-ergonomic operation; the streamlined design reduces air flow disturbances in a clean room workbench to a minimum. Moreover the LabFlame is very easy to clean.

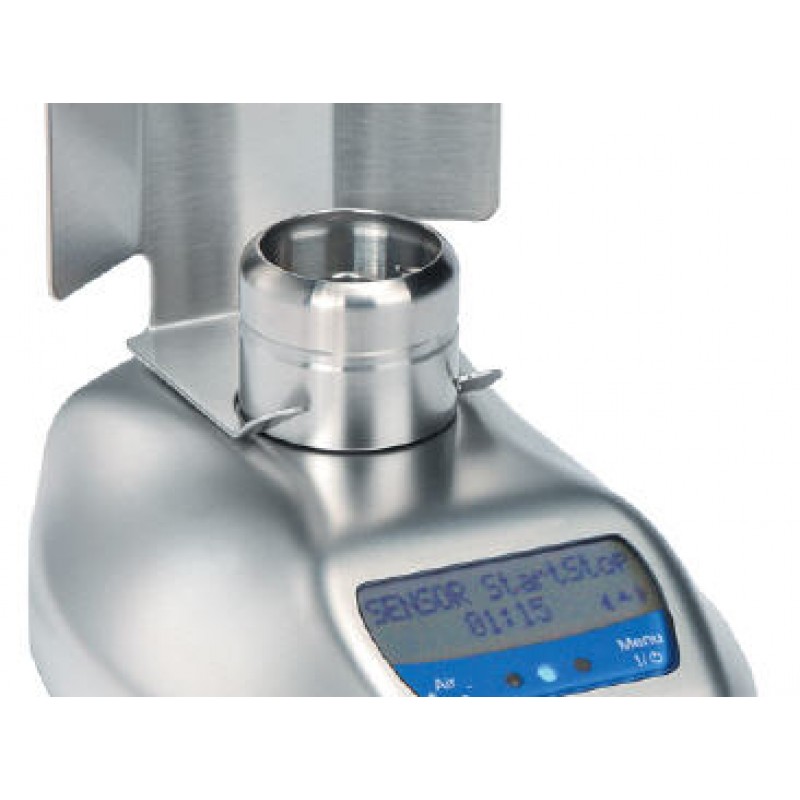

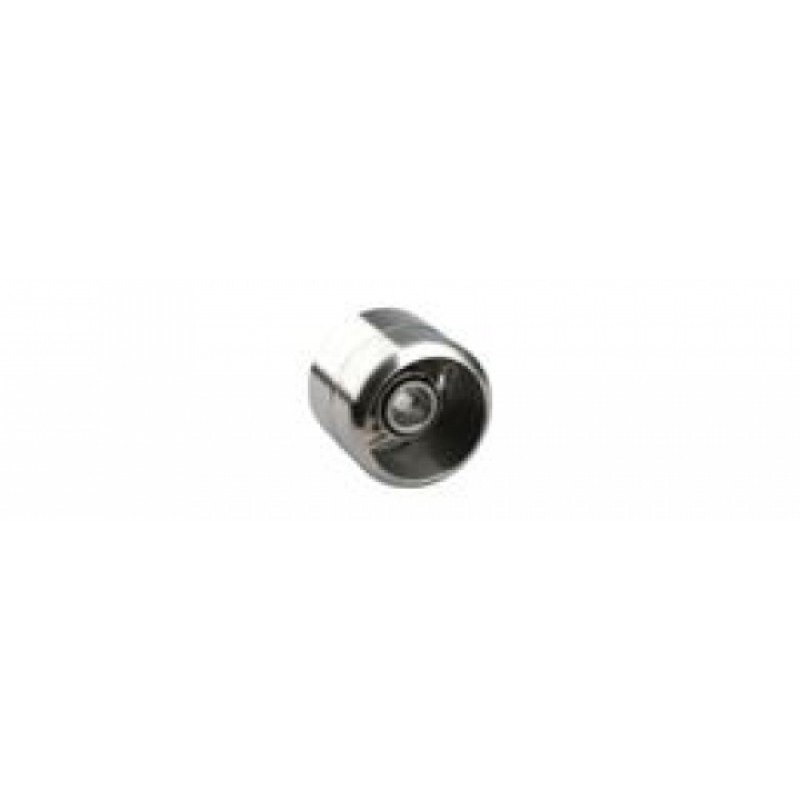

Removable Burner Head. Made of stainless steel

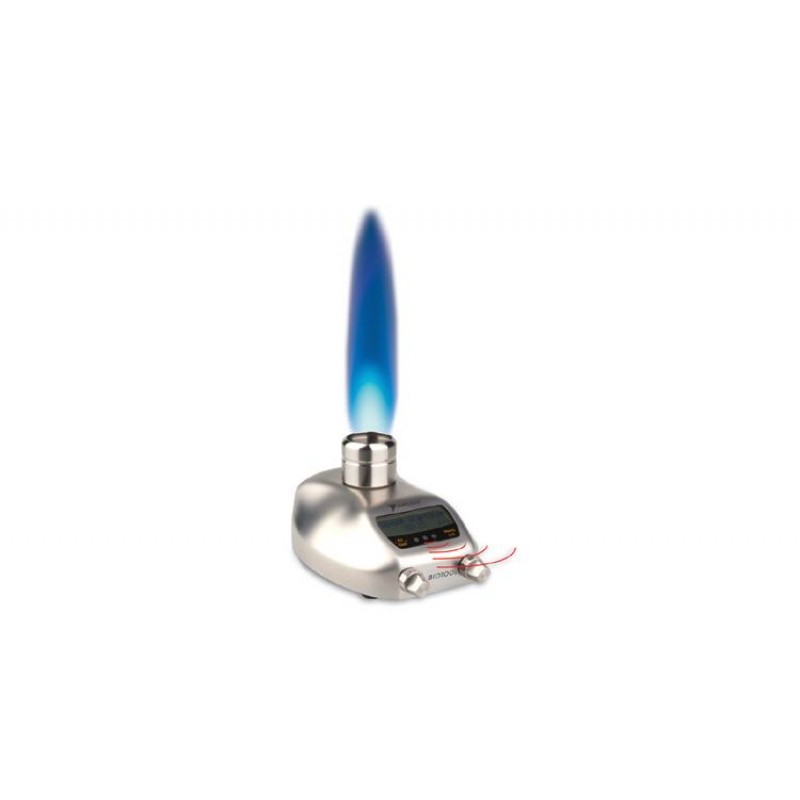

An extremely firm and consistent flame with only a few flicks of the wrist

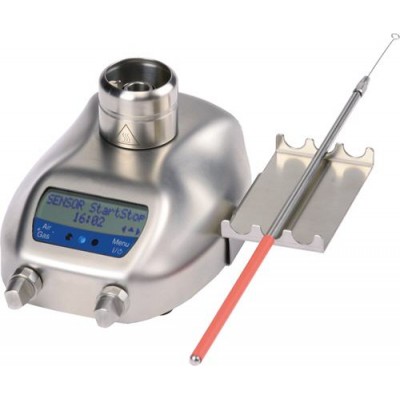

Carrousel for flame sterilizing inoculation loops
The inoculation loop Autoloop PRO, which is suitable for up to 4 inoculation loops, was developed to comply with current requirements in microbiological, cellbiological and biotechnological laboratories.
Technical Data
|
Technology: |
Microprocessor |
|
Display: |
Fully graphic dot-matrix |
|
Rotational
direction: |
Left / right, depends on removed holder |
|
Inoculation loop
holder: |
1 - 4, with optical holder
detection |
|
Time of flame
sterilizing: |
1 - 15 sec |
|
Time for
cool-down period: |
1 - 45 sec |
|
Safety features: |
Temperature control, flame activation warning, indicator
of remaining cool-down, tilt sensor, residual heat display. |
|
Adjustable sterilization monitor: |
1. Off 2. low intensity 3. middle intensity 4. high intensity |
|
Stand by: |
Automatic unit switch off: 1 h (or with stand-by time of the
burner) |
|
Operating voltage: |
via Fuego (foot
pedal socket) |
|
Casing: |
Stainless steel
& aluminum, UV and solvent resistant |
|
Measurements: |
·
Pedestal (Art.-No. 8.000.400): ·
135 x 180 mm (w x d) ·
Pedestal (Art.-No. 6.000.400): ·
135 x 135 mm (w x d) ·
Height Auto loop PRO: 305 mm |
|
Weight: |
·
Art-No. 8.000.400: 1200 g ·
Art-No. 6.000.400: 1100 g |
|
CE: |
EN 61326-1, EN61000-3-2, EN 61010 |
|
EEC guidelines: |
89/336/EEC, 73/23/EEC |
