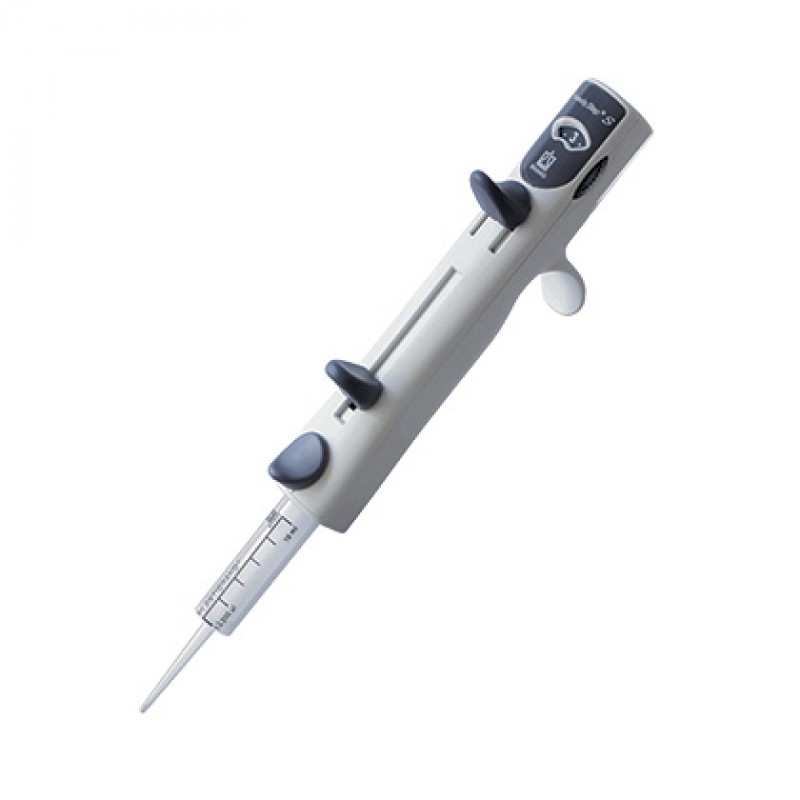

for serial pipetting of volumes between 2 µl and 5 ml. A close-tolerance stepping mechanism allows the HandyStep® S repetitive pipette to offer precise repetition of the selected volume. With up to 49 dispensing steps from each aspiration, it is ideal for making aliquots of stock liquids.
the instrument works on the positive displacement principle, making it suitable for routine dispensing, as well as for difficult liquids. Viscous, high density or high vapor pressure liquids can be dispensed while maintaining accuracy and precision.
conformity certified, with performance certificate
ergonomic
one-hand operation
separate tip ejector
superior handling
maintenance-free
factory adjusted
approved for in-vitro diagnostic (IVD) applications according to IVD directive 98/79/EC, with CE-mark

Cat. No		Unit
5114200	with wall support	1

Accuracy table

HandyStep®S with PD-Tips	Volume range	A* ≤ ± % 100%	A* ≤ ± % 20%	CV* ≤ % 100%	CV* ≤ % 20%
0.1 ml	2-10 μl	1.6	8.0	2.0	5.0
0.5 ml	10-50 μl	0.8	4.0	0.6	1.4
1.0 ml	20-100 μl	0.8	4.0	0.4	1.0
1.25 ml	25-125 μl	0.8	4.0	0.3	0.8
2.5 ml	50-250 μl	0.7	3.5	0.2	0.8
5.0 ml	100-500 μl	0.5	2.5	0.2	0.6
10.0 ml	200-1000 μl	0.4	1.5	0.2	0.5
12.5 ml	250-1250 μl	0.3	1.5	0.2	0.4
25 ml	500-2500 μl	0.3	1.5	0.2	0.4
50 ml	1000-5000 μl	0.3	1.5	0.15	0.4

CV = Coefficient of variation A = Accuracy

Error limits refer to the partial volume set relative to the PD-Tip size, obtained at equal temperature (20 °C) of instrument, tip, ambience and distilled water, and with smooth, steady operation. The testing is according to DIN EN ISO 8655-5.

Steps and volume ranges
